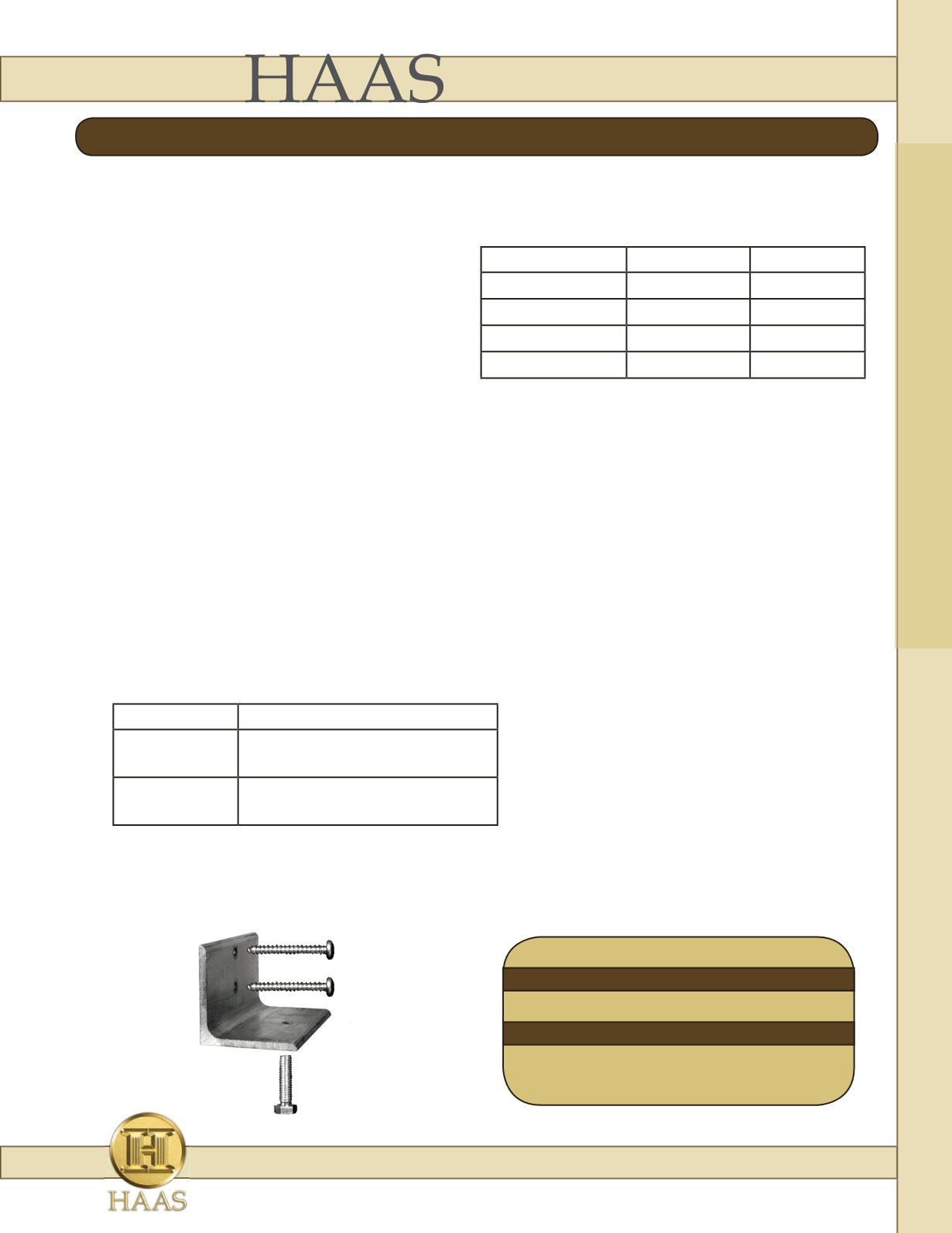

Haas Architectural Millwork - Ph. (717) 840-4227 - Fax (717) 840-4228
www.haasmillwork.com -Email:
haasmillwork@haasmillwork.comBALUSTRADE SYSTEM Installation Instructions
Kit Number* Newel Posts
Fits
HNPK 304-8
In-Line Kit
8
"
Newel
HCNPK 304-8
Corner Kit
8
"
Newel
HNPK 304-12
In-Line Kit
12
"
Newel
HCNPK 304-12 Corner Kit
12
"
newel
Over the Newel Post Installation Kit
(Order 1 kit per Newel Post)
Wood Kit
1. One floor flange
2. Four 3/8
"
x 2
"
lag bolts
3. One 1/2
"
x 48
"
threaded rod
4. One “C
"
channel
5. One 1/2
"
flat washer
6. One 1/2
"
lock washer
7. One 1/2
"
Nut
8, One Top Rail H-Bracket
Concrete Kit
1. One floor flange
2. Four 3/8
"
x 2-1/4
"
concrete wedge bolts
3. One 1/2
"
x 48
"
threaded rod
4. One “C
"
channel
5. O ne 1/2
"
flat washer
6. One 1/2
"
lock washer
7. One 1/2
"
nut
8. One Top Rail H-Bracket
Over the Newel Railing Installation Kit
(Order 1 kit per Rail Section)
Kit Number
Fits These Rails
HRK 206-B
HTR 206, HBR 207,
HTR 214, HBR 215
HRK 208-B
HTR 208, HBR 209,
HTR 216
* STAIR APPLICATION - Standard Stair Rail Kit.
& Newel Kit. Over the Newel Kits are not made
to work on stairs.
The only change for the OVER THE NEWEL
INSTALLATION is the H-bracket is through bolted
on top of the C-Channel of the Newel Kit. This also
eliminates the need for standard top rail brackets. The
top rail is then secured with screws through the pre-
drilled holed in the H-Bracket.
*
Comes with Bottom Brackets only.
Over the Newel Railing Kit
1. Two pre-drilled aluminum angle brackets
w/ 5/16
"
tapped hole (Bottom Rail)
2. Eight #14 x 2
"
self tapping screws
3. Four 1/4
"
x 2
"
Panhead bolts
4. Two 5/16
"
x 1 1/2
"
hex head bolts
*Note: Specify -W for wood application
or -C for concrete application
Ex. (HNPK 304-8-W or HNPK 304-8-C)
RAIL KITS
Part No.
HRK 208 ; HRK 216
**Customer must specify rise and run of stairs
1 KIT PER TOP & BOTTOM RAIL SECTION
STAIR RAIL KITS
Part No.
HRKS 208 / HRKS 216
