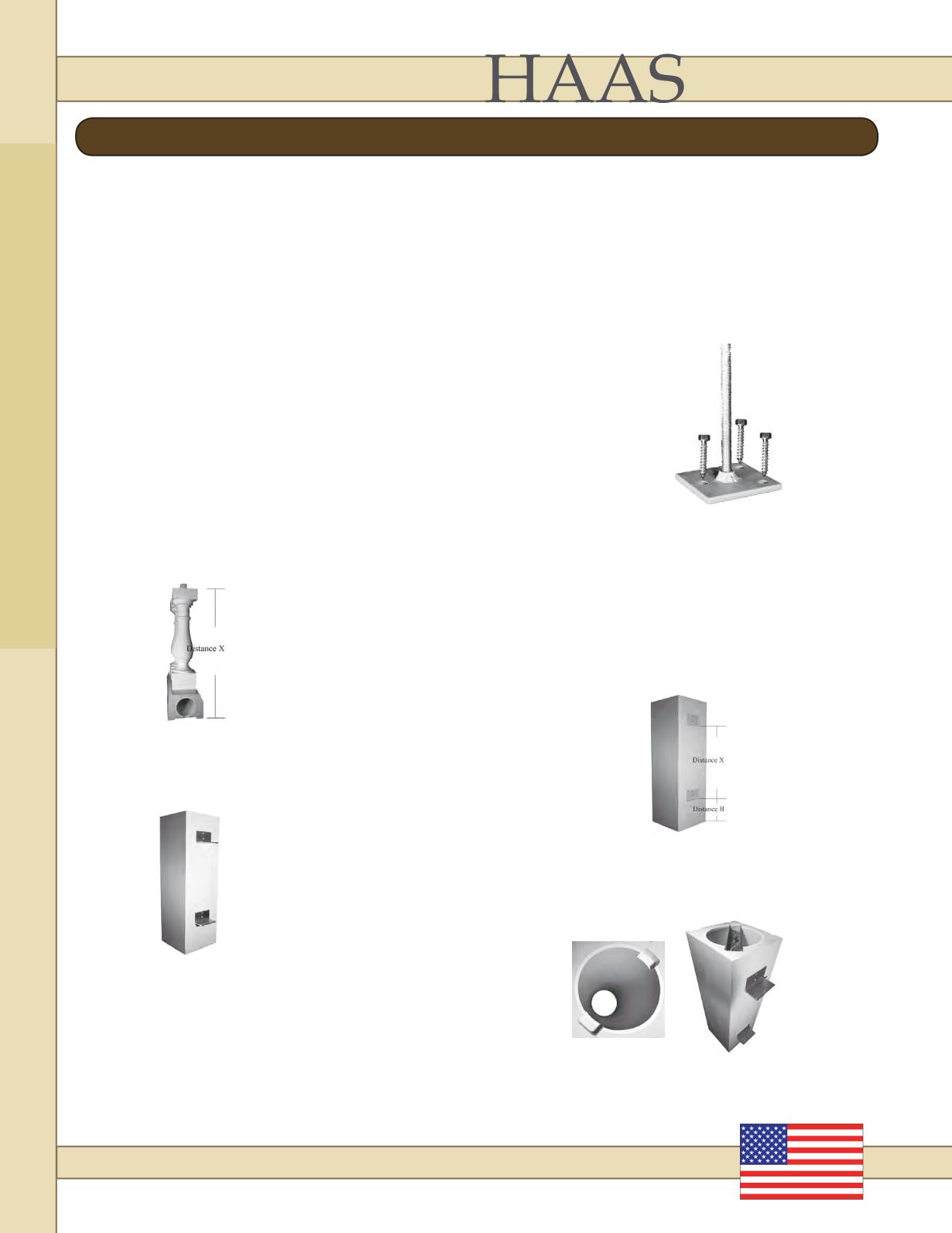

STEP 1
Mark the layout line and center points of each porch post and newel post prior to installation.
This is very important to ensure the accurate length for installing the top and bottom rails. Use
12’ as the maximum railing length.
STEP 2
WOOD DECKING INSTALLATION
1. Install blocking under where each newel’s floor flange will be located.
2. Locate and center each floor flange and secure using 3/8
"
lag bolts.
3. Thread the 1/2
"
x 48
"
rod into the welded nut on the floor flange and
tighten using vise grips.
CONCRETE INSTALLATION
1. Mark anchor hole in floor flange. Drill a 3/8
"
hole 1 1/4
"
deep into the cured concrete.
2. Insert anchor and using a punch, set the anchor pin.
STEP 3
1. Measure and combine the heights of the bottom rail and baluster
(Distance X). This is the distance between the bottom of the
angle brackets used to fasten railings to posts.
2. Mark the location and height of the bottom rail from the concrete
or wood surface (Distance B).
3. Using the measurement of the rail and baluster (Distance X), locate
the bottom of the top bracket.
4. Mark the top and bottom bracket on the newel post.
5. Mortise the newel post so that the face of the angle brackets are inset
and are flush with the surface of the newel post.
6. Drill holes and secure angle brackets with #14 x 2 self tapping screws.
STEP 4
1. Rout the top of the newel post to accept the C-channel.
2. If trim collars are being used, slide them on the bottom
before placing the newel post over the floor flange.
3. Put the C-channel in place and secure loosely with the
nut and lock washer.
BALUSTRADE SYSTEM Installation Instructions
