46 MADE IN THE USA
Haas Architectural Millwork - Ph. (717) 840-4227 - Fax (717) 840-4228
Email:

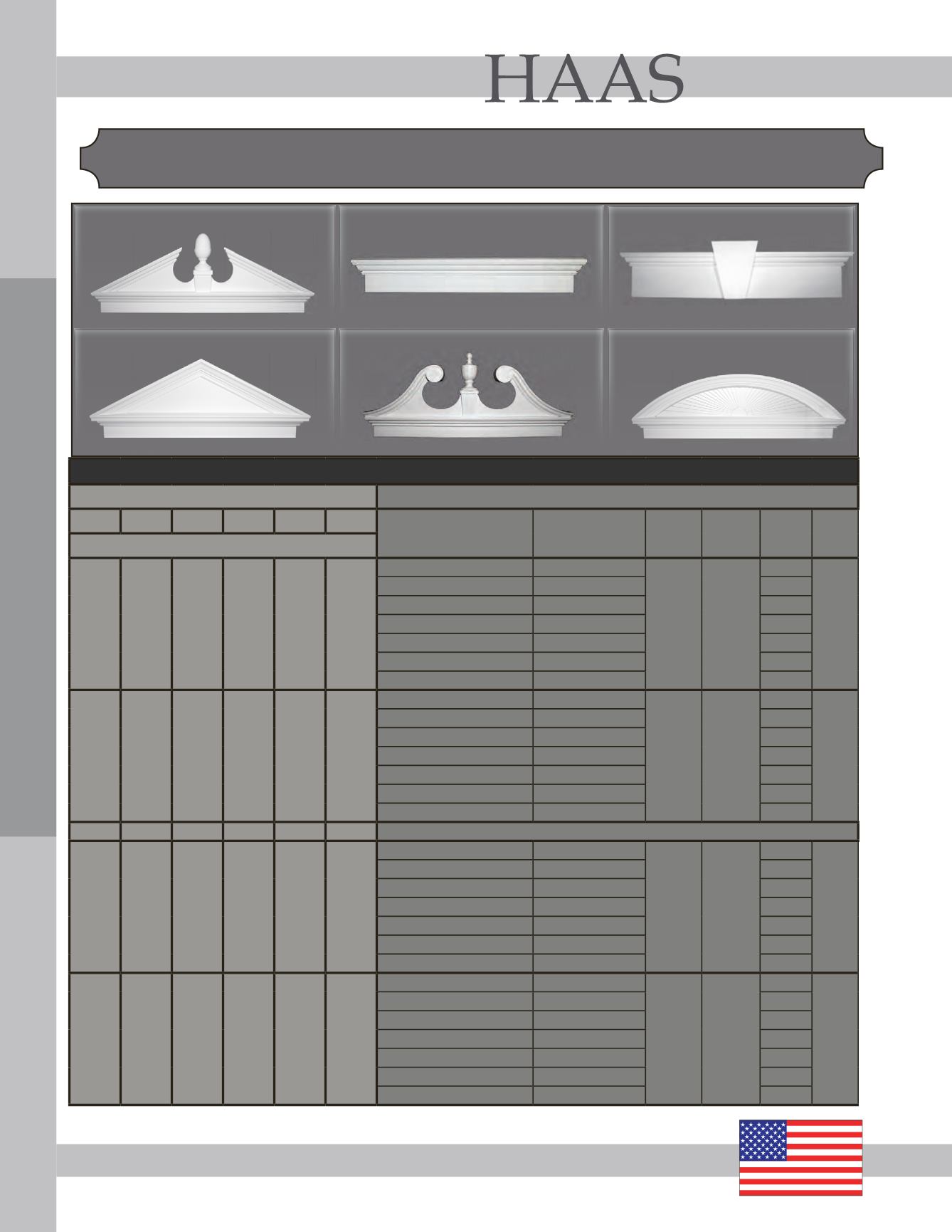

3" ENTRANCE SYSTEM
ACORN COMBO CROSSHEAD CROSSHEAD W/KEYSTONE
PEAK COMBO RAMS HEAD COMBO SEGMENT SUNBURST COMBO
PLAIN SEGMENT COMBO
Crosshead & Combination Crosshead/Pediment Selection Chart
100 SERIES PILASTER WIDTHS SINGLE DOOR
3-3/4" 4-1/2" 5-1/4" 6-3/4" 7-1/2" 9 "
Description Part No. Bottom
Width
Top
Width Height Proj
Distance Between Pilasters
40" 38-1/2" 37" 34" 32-1/2" 29-1/2"
Crosshead HCP 47-1/2
47-1/2" 53-1/4"
6 "
3"
Crosshead w/Key HCPK 47-1/3 9 "
Acorn Combo HACP 47-1/2 20-3/4"
Peak Combination HPCP 47-1/2 19 5/8 "
Plain Segment Combo HPSCP 47-1/2 19-7/8"
Rams Head Combo HRHCP 47-1/2 25"
Segment Sunburst Combo HSCP 47-1/2 19-7/8"
44-1/4" 42-3/4" 44-1/2" 38-1/4" 36-3/4" 33-3/4"
Crosshead HCP 51-3/4"
51-3/4" 56-1/4"
6 "
3"
Crosshead w/Key HCPK 51-3/4" 9 "
Acorn Combo HACP 51-3/4" 21-1/2
Peak Combination HPCP 51-3/4" 19 5/8 "
Plain Segment Combo HPSCP 51-3/4" 19-7/8"
Rams Head Combo HRHCP 51-3/4 " 25"
Segment Sunburst Combo HSCP 51-3/4" 19-7/8"
SINGLE DOOR & SINGLE DOOR W/ SIDELITES
47-1/2" 46" 44-1/2" 41-1/2" 40" 37 "
Crosshead HCP 55
55" 59"
6 "
3"
Crosshead w/Key HCPK 55 9 "
Acorn Combo HACP 55 21-1/4"
Peak Combination HPCP 55 23-1/4"
Plain Segment Combo HPSCP 55" 22-5/8"
Rams Head Combo HRHCP 55" 25-3/4"
Segment Sunburst Combo HSCP 55 22-5/8"
59" 57-1/2" 56" 53" 51-1/2" 48-1/2"
Crosshead HCP 66-1/2"
66-1/2" 70-1/2"
6 "
3"
Crosshead w/Key HCPK 66-1/2" 96"
Acorn Combo HACP 66-1/2" 24-7/8"
Peak Combination HPCP 66-1/2" 22-1/8"
Plain Segment Combo HPSCP 66-1/2" 22-1/4"
Rams Head Combo HRHCP 66-1/2 " 28-1/2"
Segment Sunburst Combo HSCP 66-1/2" 22-1/4"
