FRAME DETAILS

FRAME DETAILS

JELD-WEN EXTERIOR DOOR SYSTEM UNITS:

Every JELD-WEN Exterior Door Unit is prehung in an approved frame system that provides the very best in engineering

and functionality while offering an exceptional variety of options.

ARCHITECTURAL FIBERGLASS • DESIGN-PRO FIBERGLASS • SMOOTH-PRO FIBERGLASS

CONTOURS STEEL • GLADIATOR STEEL

STANDARD FEATURES –

• 4

9

/

16

" Primed Wood Frame - Inswing w/Limited Lifetime Warranty

• Brickmould Exterior Casing - Primed

• Compression Weatherstrip, Corner Seals and Bulb/Fin Door Bottom

• Aluminum Adjustable Sill - Mill Finish

– with Hardwood Threshold and Interior Strip

– with Protective Sill Cover.

• 4" x 4" Zinc Dichromate Hinges

• Single Bore – Architectural: 2

3

/

8

" Backset (2

1

/

8

" Facebore)

– Design-Pro, Smooth-Pro & Steel: 2'0", 2'6", 2'8" & 2'10" - 2

3

/

8

" Backset (2

1

/

8

" Facebore)

– Design-Pro, Smooth-Pro & Steel: 3'0" & 3'6" - 2

3

/

4

" Backset (2

1

/

8

" Facebore)

• Double Door Units – White Aluminum Ultimate Astragal with Flush Bolts

POPULAR OPTIONS –

Jambs

– Clear Pine, Clear Oak and Clear Mahogany

– Engineered Fir

– FrameSaver Primed

– Vinyl Clad Wood Frame

– Composite: Primed, White Cap & Mahogany-Grained

– NVD Mahogany, Cherry, Fir, Oak, Alder

Casing

– Flat: Primed, Clear Pine, Clear Cedar, Clear Oak and Clear Mahogany

– Brickmould: Clear Pine, Oak, Fir and Mahogany

– Composite Brickmould: Primed, White Cap & Mahogany-Grained

– Composite Flat: Primed, White Cap & Mahogany-Grained

– PVC Brickmould & Flat

– NVD Flat Fir

– NVD Brickmould Mahogany, Cherry, Oak, Alder

– Decorative PVC Entrance Trim

Sill

– Red Oak, White Oak or Mahogany, Bronze, Satin Nickel or Brass Aluminum or Public Access

– WeatherOut Flashing - Sill Pan for Installation of 4-9/16" and 6-9/16" Walls

Hinges

– Solid Brass, Light Brass, Bright Brass, Satin Brass, Antique Brass, Antique Bronze Lacquered,

Dark Bronze, Antique Nickel, Satin Nickel, Satin Chrome, Polished Chrome, Black,

White Primed and Stainless Steel.

Hardware

– Door Viewer, Brass Ball Tips, Mailslot, Kickplates and Door Closers

– Multi-point Lock System

Deadbolt Prep with Lockguard Security Plate.

Storm Door Adapter (for Sidelight Units) –

Primed, Clear Pine and Clad Plus II.

SINGLE DOOR

w/Sidelight(s)

Handing is determined

the same as a single

door unit. If ordering a

unit with one sidelight,

specify sidelight on

hinge side or knob side.

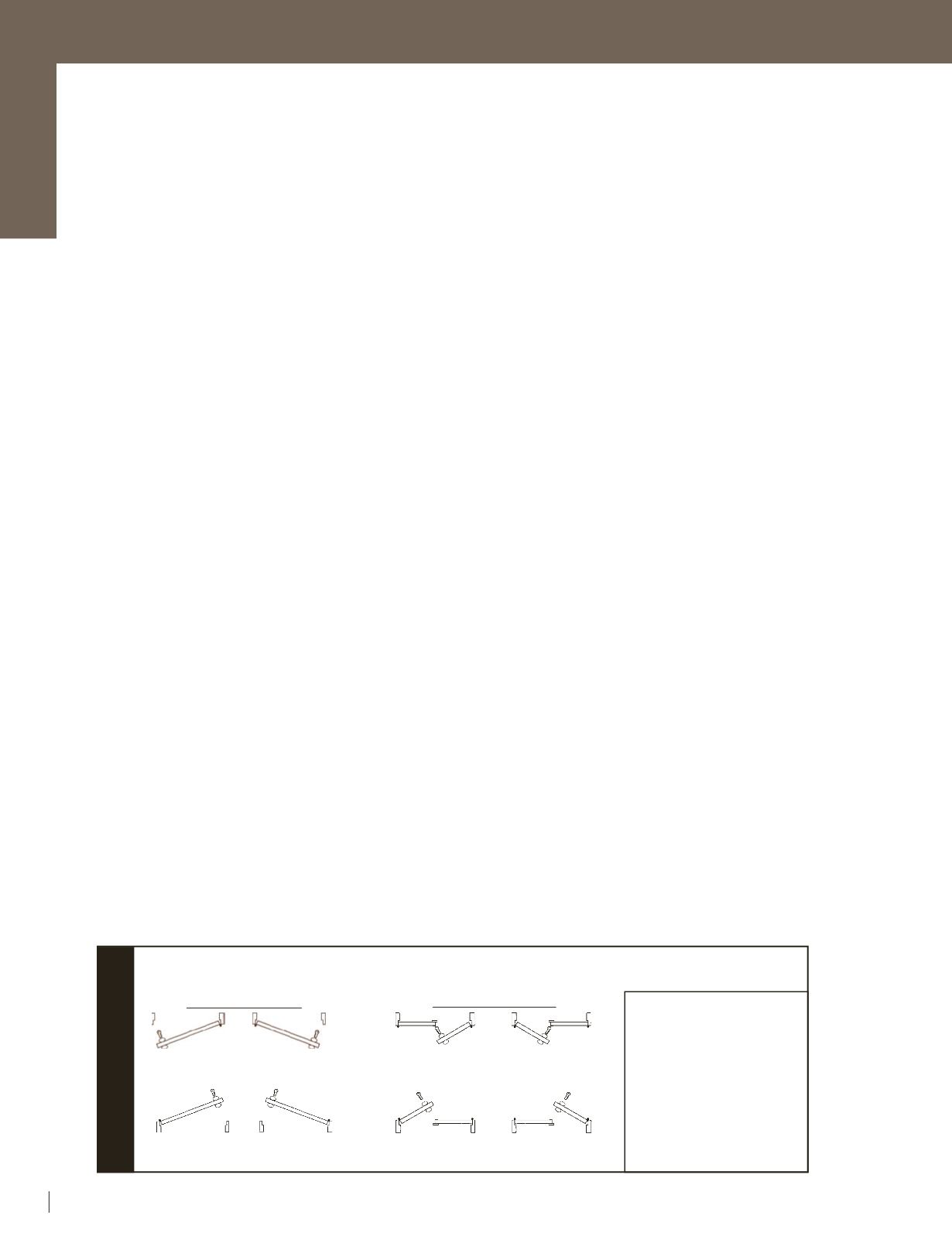

SINGLE DOOR

When the door opens toward you and the knob is on the left hand side, it is a LEFT HAND

DOOR. When the knob is on the right, it is a RIGHT HAND DOOR.

DOUBLE DOOR

Left Hand

Right Hand

Inswing

Inswing

Left Hand

Right Hand

Outswing

Outswing

H

A

N

D

I

N

G

Left Hand

Right Hand

Inswing

Inswing

Left Hand

Right Hand

Outswing

Outswing
