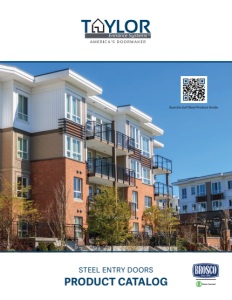

STEEL ENTRY DOORS PRODUCT CATALOG Scan for full Steel Product Guide.
2 75+ YEARS OF DOORS Taylor Entrance Systems™ is an industry-leading, American-made manufacturer of premium steel entry doors serving residential and commercial markets. For 75+ years, Taylor has been providing innovative solutions and value-added products to the building materials industry, making them known as America’s doormaker.
3 ESTABLISHED When Taylor was established in 1946, Mr. R.L. Taylor could not have envisioned how his small metal-forming business could significantly and continuously impact the evolution of many products currently used in building homes. 1946 2021 75th ANNIVERSARY In 2021, Taylor celebrated their 75th anniversary of being America’s doormaker. 1968 RELOCATED Originally located in the Detroit area, the company relocated permanently to West Branch, Michigan, in 1968. TRANSITION In December 2012, Taylor was acquired by Wausau Supply Co., an industry-leading building materials distributor and manufacturer based in central Wisconsin. The 2012 transition led to a new focus on the multi-family and light commercial markets. Taylor has grown dramatically throughout the past several years and now has a diverse customer base that focuses on residential and commercial projects throughout the United States. To support the needs of this diverse customer base, Taylor added state-of-the-art, automated equipment to its production facility. INNOVATION Through the decades, Taylor has developed a history of innovation, bringing numerous products to market that have helped further shape the fenestration industry. The products introduced were Adjustable Hinge steel doors, Stainable Steel doors, commercial products, 8-foot steel doors, smooth and woodgrain fiberglass doors, and a 90-minute fire-rated steel frame. 19802000 20122020
4 ABOUT TAYLOR Taylor Entrance Systems™ specializes in delivering high-quality commercial door solutions for student housing, senior living, multi-family, and mixed-use properties, offering a wide range of customizable options, superior performance, and trending door styles. Taylor’s steel entry doors are customized to fit your project spec, including sizes to fit hollow metal frames and preps to accept virtually any locking hardware. Choose Taylor’s commercial door solutions for your next project. STEEL ENTRY DOORS • Extensive range of door styles, from timeless classics to contemporary designs • Smooth steel-edge doors in 18-, 20-, 22-, and 24-gauge steel • Textured Oak steel-edge doors in 22-gauge steel • Painted doors provide a crisp, professional look • Smooth wood-edge doors in 25-gauge steel • Steel and wood frames • Slabs or pre-hung units
5 DOOR SOLUTIONS • Trending door styles with ADA-compliant options • Customized door sizes • Doors and frames are firerated for up to 90 minutes • Custom face and edge preps • Can match any manufacturer’s hinge or lock location • Steel plate reinforcements for closer and panic preps • Multi-point hardware preps on steel-edge doors • No maximum or minimum ordering requirements CLOSER & PANIC REINFORCEMENT PREPS Closer Block Panic Prep & Closer Plates, with Wood Lock Block Head & Foot Door Prep Multi-Purpose Door Prep CB CBPBWB HFB MP
6 AIA PRESENTATION Steel doors are not only as aesthetically pleasing as doors made of other materials but excel in many other categories, such as durability, energy efficiency, sustainability, fire ratings, cost-effectiveness, ease of installation, and ease of maintenance. This course lists the questions architects, and others should ask to specify the best high-quality steel door for the application. LEARNING OBJECTIVES • Describe codes and standards that apply to high-performing steel doors • Identify factors that impact energy efficiency in steel doors • Explain ADA requirements for exterior doors and how to achieve them • Define superior fire ratings for exterior doors • Describe how to specify high-performing metal doors systems LU & HSW APPROVED Credit(s) earned on completion of this course will be reported to AIA CES for AIA members. Certificates of Completion for both AIA members and non-AIA members are available upon request. This course is registered with AIA CES for continuing professional education. As such, it does not include content that may be deemed or construed to be an approval or endorsement by the AIA of any material of construction or any method or manner of handling, using, distributing, or dealing in any material or product. SPECIFYING HIGH-QUALITY STEEL DOORS FOR MULTI-FAMILY APPLICATIONS
7 WestGuard-18 & 20 Series // TAYLOR PRODUCT GUIDE WESTGUARD-18 SERIES The WestGuard 18-gauge door series offers dependable performance and versatility with a wide range of embossment options, making this door a popular choice for any application. It’s the perfect solution for commercial applications, including main entrances, condominiums, and senior and assisted living spaces. The WestGuard series is a durable and customizable solution built to perform in high-traffic environments while maintaining a clean, finished look. STANDARD SPECIFICATIONS FACE MATERIAL G40 hot-dipped galvanized steel skin SKIN GAUGE 18-gauge SKIN SURFACE Smooth FINISH Baked-on polyester primer CORE MATERIAL Injected polyurethane foam core EDGE CONSTRUCTION Full steel-edge perimeter THICKNESS 1.720" (nominal 1-3/4") LOCK BLOCK Composite lock block HINGE REINFORCEMENTS 18-gauge mortise hinge reinforcement HINGE PREP 4-1/2” mortise commercial hinge CLOSER PREP Steel closer reinforcement plates (standard on 18-gauge) AVAILABLE OPTIONS HINGE PREP (18-GAUGE) 4” surface mount, template fixed hinge 12TF 4-1/2” surface mount, commercial template fixed hinge 4-1/2” mortise commercial hinge CLOSER PREP Steel closer reinforcement plates PANIC PREP Exit hardware reinforcement ADA COMPLIANCE 10" ADA bottom rail on specific styles BOTTOM CHANNEL Inverted bottom channel (18-gauge only) FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color WARRANTY COMMERCIAL Limited 7-Year Warranty * RESIDENTIAL Limited Lifetime Warranty * *Refer to full warranty for details.
8 TAYLOR PRODUCT GUIDE // WestGuard-18 & 20 Series WESTGUARD-20 SERIES The WestGuard Series delivers superior performance and withstands regular wear and tear with its 20-gauge, hot-dipped galvanized steel doors. This construction, combined with an innovative injected polyurethane foam core, makes it the perfect door for commercial and high-traffic applications, ensuring unmatched durability, reliability, and thermal insulation in demanding environments. STANDARD SPECIFICATIONS FACE MATERIAL G40 hot-dipped galvanized steel skin SKIN GAUGE 20-gauge SKIN SURFACE Smooth FINISH Baked-on polyester primer CORE MATERIAL Injected polyurethane foam core EDGE CONSTRUCTION Full steel-edge perimeter THICKNESS 1.720" (nominal 1-3/4") LOCK BLOCK Composite lock block HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement HINGE PREP 4” surface mount, fixed hinge prep CLOSER PREP Steel closer reinforcement plates available AVAILABLE OPTIONS HINGE PREP (20-GAUGE) 4" surface mount, fixed hinge 4" surface mount, adjustable hinge 4" surface mount, template fixed hinge 4-1/2" surface mount, commercial template fixed hinge 4-1/2" mortise commercial hinge CLOSER PREP Steel closer reinforcement plates PANIC PREP Exit hardware reinforcement ADA COMPLIANCE 10" ADA bottom rail on specific styles FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color WARRANTY COMMERCIAL Limited 7-Year Warranty * RESIDENTIAL Limited Lifetime Warranty * *Refer to full warranty for details. DOOR TESTING* Refer to Rating section for details. FIRE RATING 20-minute or 90-minute SECURITY RATING Grade 40 STC RATING 21 OITC RATING 25 U-VALUE 0.17 *Door testing values are for 20-gauge only. Values for 18-gauge coming soon!
9 DOOR STYLES TRUE 4-PANEL 4P FLUSH FL 1-PANEL FLAT SHAKER 1FPS 2-PANEL FLAT SHAKER 2FPS 2-PANEL RAISED 2PHD 2-PANEL ARCH TOP RAISED WestGuard-20 Only 2PATHD 3-PANEL FLAT SHAKER 3FPS 3-PANEL HORIZONTAL FLAT SHAKER 3PEFS 4-PANEL BLANK TOP RAISED WestGuard-20 Only 4PBTHD 5-PANEL HORIZONTAL SHAKER 5PE 6-PANEL RAISED 6PHD Scan for Product Guide and size availability. SIDELITES matching styles available; refer to Product Guide GLASS CUTOUTS available upon request
10 CAMBRIDGE SERIES The Cambridge Series is your gateway to unparalleled strength, security, and style. This premium, 22-gauge smooth steel door defends against damage and corrosion. With an extensive range of door styles, from timeless classics to contemporary designs, you can find the perfect match for any project. These doors offer Grade 40 security, ensuring peace of mind and enhanced protection against forced entries. STANDARD SPECIFICATIONS FACE MATERIAL G40 hot-dipped galvanized steel skin SKIN GAUGE 22-gauge SKIN SURFACE Smooth FINISH Baked-on polyester primer CORE MATERIAL Injected polyurethane foam core EDGE CONSTRUCTION Full steel-edge perimeter THICKNESS 1.720" (nominal 1-3/4") LOCK BLOCK Composite lock block HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement HINGE PREP 4" surface mount, fixed hinge prep AVAILABLE OPTIONS HINGE PREP 4" surface mount, fixed hinge 4" surface mount, adjustable hinge 4" surface mount, template fixed hinge 4-1/2" surface mount, commercial template fixed hinge CLOSER PREP Steel closer reinforcement plates PANIC PREP Exit hardware reinforcement ADA COMPLIANCE 10" ADA bottom rail on specific styles FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color WARRANTY COMMERCIAL Limited 7-Year Warranty * RESIDENTIAL Limited Lifetime Warranty * *Refer to full warranty for details. DOOR TESTING Refer to Rating section for details. FIRE RATING 20-minute or 90-minute SECURITY RATING Grade 40 STC RATING 25 OITC RATING 24 U-VALUE 0.17 BIM | CAD | Specs BROSCO BOISE CASCADE STANDARD 90 MINUTE DOORS
11 FLUSH FL 3-PANEL FLAT SHAKER 3FPS 1-PANEL FLAT SHAKER 1FPS 3-PANEL HORIZONTAL FLAT SHAKER 3PEFS 2-PANEL FLAT SHAKER 2FPS 4-PANEL BLANK TOP RAISED 4PBTHD 2-PANEL RAISED 2PHD 5-PANEL HORIZONTAL SHAKER 5PE 2-PANEL ARCH TOP RAISED 2PATHD 6-PANEL RAISED 6PHD DOOR STYLES 2-PANEL ARCH TOP PLANK RAISED 2PATPHD 1-PANEL RAISED 1PHD 3/4 2-PANEL RAISED 3/4-2PSTHD 3-PANEL RAISED 3PHD 3-PANEL CRAFTSMAN RAISED 3PCRHD 2-PANEL COTTAGE RAISED 2PCOTHD TRUE 4-PANEL RAISED T4P 8-PANEL RAISED 8P 9-PANEL RAISED 9P Scan for Product Guide and size availability. SIDELITES matching styles available; refer to Product Guide GLASS CUTOUTS available upon request
12 MIDLAND SERIES The Midland Series offers a reliable choice in commodity doors, featuring a durable 24-gauge smooth steel construction. These doors are designed for practicality and functionality while providing stylish panel designs. The Midland series ensures robust performance without compromising quality, making it an ideal solution for residential and light commercial applications. STANDARD SPECIFICATIONS FACE MATERIAL G40 hot-dipped galvanized steel skin SKIN GAUGE 24-gauge SKIN SURFACE Smooth FINISH Baked-on polyester primer CORE MATERIAL Injected polyurethane foam core EDGE CONSTRUCTION Full steel-edge perimeter THICKNESS 1.720" (nominal 1-3/4") LOCK BLOCK Composite lock block HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement HINGE PREP 4" surface mount, fixed hinge prep AVAILABLE OPTIONS HINGE PREP 4" surface mount, fixed hinge 4" surface mount, adjustable hinge 4" surface mount, template fixed hinge 4-1/2" surface mount, commercial template fixed hinge CLOSER PREP Steel closer reinforcement plates PANIC PREP Exit hardware reinforcement ADA COMPLIANCE 10" ADA bottom rail on specific styles FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color WARRANTY COMMERCIAL Limited 7-Year Warranty * RESIDENTIAL Limited Lifetime Warranty * *Refer to full warranty for details. DOOR TESTING Refer to Rating section for details. FIRE RATING 20-minute or 90-minute SECURITY RATING Grade 40 STC RATING 22 OITC RATING 23 U-VALUE 0.17 BIM | CAD | Specs
13 FLUSH FL 4-PANEL BLANK TOP RAISED 4PBTHD 2-PANEL RAISED 2PHD 5-PANEL HORIZONTAL SHAKER 5PE 2-PANEL ARCH TOP RAISED 2PATHD 6-PANEL RAISED 6PHD DOOR STYLES 2-PANEL ARCH TOP PLANK RAISED 2PATPHD 1-PANEL RAISED 1PHD 3/4 2-PANEL RAISED 3/4-2PSTHD 3-PANEL CRAFTSMAN RAISED 3PCRHD TRUE 4-PANEL RAISED T4P 8-PANEL RAISED 8P CROSSBUCK XB Scan for Product Guide and size availability. SIDELITES matching styles available; refer to Product Guide GLASS CUTOUTS available upon request
14 NORWOOD SERIES The Norwood Series perfectly combines classic elegance and modern durability. These 22-gauge, stainable steel doors capture the beauty of wood while harnessing the strength of steel. The deeply embossed Oak grain surface is primed in beige, allowing stain or paint application to enhance the texture and create an authentic woodgrain appearance. Make your opening stand out with our Norwood series. STANDARD SPECIFICATIONS FACE MATERIAL G40 hot-dipped galvanized steel skin SKIN GAUGE 22-gauge SKIN SURFACE Oak woodgrain texture FINISH Special beige primer allows for stain/paint application CORE MATERIAL Injected polyurethane foam core EDGE CONSTRUCTION Full steel-edge perimeter THICKNESS 1.720" (nominal 1-3/4") LOCK BLOCK Composite lock block HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement HINGE PREP 4" surface mount, fixed hinge prep AVAILABLE OPTIONS HINGE PREP 4" surface mount, fixed hinge 4" surface mount, adjustable hinge 4" surface mount, template fixed hinge 4-1/2" surface mount, commercial template fixed hinge CLOSER PREP Steel closer reinforcement plates PANIC PREP Exit hardware reinforcement ADA COMPLIANCE 10" ADA bottom rail on specific styles FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color WARRANTY COMMERCIAL Limited 7-Year Warranty * RESIDENTIAL Limited Lifetime Warranty * *Refer to full warranty for details. DOOR TESTING Refer to Rating section for details. FIRE RATING 20-minute or 90-minute SECURITY RATING Grade 40 STC RATING 25 OITC RATING 24 U-VALUE 0.17 BIM | CAD | Specs
15 FLUSH FL 3-PANEL FLAT SHAKER 3FPS 1-PANEL FLAT SHAKER 1FPS 2-PANEL FLAT SHAKER 2FPS 4-PANEL BLANK TOP RAISED 4PBTHD 2-PANEL RAISED 2PHD 2-PANEL ARCH TOP RAISED 2PATHD 6-PANEL RAISED 6PHD DOOR STYLES 2-PANEL ARCH TOP PLANK RAISED 2PATPHD 1-PANEL RAISED 1PHD 3-PANEL RAISED 3PHD 3-PANEL CRAFTSMAN RAISED 3PCRHD TRUE 4-PANEL RAISED T4P 8-PANEL RAISED 8P Scan for Product Guide and size availability. SIDELITES matching styles available; refer to Product Guide GLASS CUTOUTS available upon request
16 TRUKOTE SERIES The Trukote Series offers an effortless style for your multi-family projects. These ready-to-install, 24-gauge steel doors are prefinished and require no additional finishing. The factory-finish white polyester paint guarantees a stylish look and the best value among prefinished doors. Choose Trukote for a seamless and cost-effective solution, transforming your project effortlessly. STANDARD SPECIFICATIONS FACE MATERIAL G40 hot-dipped galvanized steel skin SKIN GAUGE 24-gauge SKIN SURFACE Prefinished smooth FINISH White polyester paint, no additional finishing required CORE MATERIAL Injected polyurethane foam core EDGE CONSTRUCTION Full steel-edge perimeter THICKNESS 1.720" (nominal 1-3/4") LOCK BLOCK Composite lock block HINGE REINFORCEMENTS 20-gauge fixed hinge reinforcement HINGE PREP 4" surface mount, fixed hinge prep AVAILABLE OPTIONS HINGE PREP 4" surface mount, fixed hinge 4" surface mount, adjustable hinge 4" surface mount, template fixed hinge 4-1/2" surface mount, commercial template fixed hinge CLOSER PREP Steel closer reinforcement plates PANIC PREP Exit hardware reinforcement ADA COMPLIANCE 10" ADA bottom rail on specific styles FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color WARRANTY COMMERCIAL Limited 7-Year Warranty * RESIDENTIAL Limited 10-Year Warranty * *Refer to full warranty for details. DOOR TESTING Refer to Rating section for details. FIRE RATING 20-minute or 90-minute SECURITY RATING Grade 40 STC RATING 22 OITC RATING 23 U-VALUE 0.17 BIM | CAD | Specs
17 FLUSH FL 2-PANEL RAISED 2PHD 2-PANEL ARCH TOP RAISED 2PATHD 6-PANEL RAISED 6PHD DOOR STYLES Scan for Product Guide and size availability. SIDELITES matching styles available; refer to Product Guide GLASS CUTOUTS available upon request
18 EDGEWOOD® SERIES Discover durability with the Edgewood Series. These 25-gauge smooth steel doors feature a unique 10° face sheet bend and a wood stile and rail system. The composite bottom rail safeguards against rot and insects, ensuring low maintenance. With a 20-minute fire rating and white primer finish, these doors combine safety and style seamlessly. Elevate your space with the Edgewood Series. STANDARD SPECIFICATIONS FACE MATERIAL G40 hot-dipped galvanized steel skin SKIN GAUGE 25-gauge (24-gauge on specific styles) SKIN SURFACE Smooth FINISH Baked-on polyester primer CORE MATERIAL Injected polyurethane foam core EDGE CONSTRUCTION Wood-edge perimeter THICKNESS 1.720" (nominal 1-3/4") LOCK BLOCK Wood lock block STILES & RAILS 1-1/4" solid wood stile and rail system, with a composite bottom rail HINGE PREP 4" mortise hinge AVAILABLE OPTIONS HINGE PREP 4" mortise hinge 4" surface mount, fixed hinge Blank hinge CLOSER PREP Steel closer reinforcement plates PANIC PREP Exit hardware reinforcement ADA COMPLIANCE 10" ADA bottom rail on specific styles FINISH Choose optional paint finish from black, white, or any Sherwin-Williams color WARRANTY COMMERCIAL not applicable RESIDENTIAL Limited 10-Year Warranty * *Refer to full warranty for details. DOOR TESTING Refer to Rating section for details. FIRE RATING 20-minute (6'8" height) STC RATING 24 OITC RATING 23 U-VALUE 0.12 BIM | CAD | Specs
19 FLUSH FL 2-PANEL RAISED 2PHD 6-PANEL RAISED 6PHD DOOR STYLES 4-PANEL BLANK TOP RAISED 4PBTHD TRUE 4-PANEL RAISED T4P Scan for Product Guide and size availability. SIDELITES matching styles available; refer to Product Guide GLASS CUTOUTS available upon request
20 DOOR CONSTRUCTION Discover Taylor’s precision-crafted steel doors, featuring robust American-made, hot-dipped galvanized steel and innovative design. From the injected polyurethane foam inner core to advanced features like full steel-edge perimeters and reinforced hinges, our doors set new standards for durability and customization in entryway solutions. The injected inner core of polyurethane foam enhances insulation, acting as a bonding agent to lock all internal components in place for enhanced durability. Door sweep weatherstrip enhances weather resistance, improves energy efficiency, and deters the entry of insects and debris. The heavy gauge hinge reinforcement ensures long-term performance and enhanced security. Doors are constructed with two steel sheets, available in different gauge thicknesses, and feature hot-dip galvanized steel for added durability and corrosion resistance. The composite lock block provides secure mounting of door hardware and enhanced structural integrity.
21 FIXED HINGE PREP The fixed hinge prep is standard on Taylor doors, featuring a 4" surface mount hinge prep with a sturdy fixed hinge reinforcement plate. This straightforward design ensures ease of installation and long-term performance. HINGE REINFORCEMENTS Our doors boast a heavy gauge hinge reinforcement plate, ensuring long-term performance and enhanced security. This strategically designed plate prevents wear and tear over time, adding durability to the hinge area. Our offering includes: 20-gauge (surface mounted fixed hinge prep), 11-gauge (adjustable hinge prep) and 7-gauge (commercial mortise prep) hinge reinforcement plates.
22 INVERTED BOTTOM CHANNEL* Designed for versatility, our inverted bottom channels accommodate a broad range of door hardware. Whether you’re installing automatic door bottoms or opting for traditional U-shaped door sweeps, our channel design ensures seamless compatibility. This flexibility makes it easy to achieve reliable threshold sealing while streamlining installation. *Available with WestGuard-18 only ADJUSTABLE HINGE PREP Taylor’s Adjustable Hinge Plate System is a versatile solution for your door needs, featuring a 4" surface mount hinge prep with an accompanying adjustable hinge backer plate. This unique hinge system allows for easy adjustments up/down and in/out without removing the door from the frame, all achieved effortlessly with a simple screwdriver. MORTISE HINGE PREP The 4.5" mortise commercial hinge prep is designed for projects requiring a recessed hinge pocket. Exclusive to the WestGuard door series, this prep is tailored for hollow metal frames and resolves the need for under-sizing doors. Its unhanded design provides flexibility, accommodating both left-handed and right-handed installations. Additionally, filler plates come standard with each door. DOOR CONSTRUCTION
23 RATINGS Taylor’s steel doors meet diverse needs and requirements. From TDI-approved durability against harsh weather to high-security options, exceptional acoustic performance, and hurricane-resistant attributes. Our entry doors are designed to exceed expectations, providing peace of mind and outstanding performance across various scenarios and environments. TEXAS DEPT. OF INSURANCE (TDI) APPROVALS Taylor offers steel doors that have been rigorously evaluated for compliance with wind load standards set by the International Residential Code (IRC) and the International Building Code (IBC). These evaluations are conducted by the Texas Department of Insurance (TDI), and you can access detailed reports on their website at tdi.texas.gov. SECURITY RATING STC & OITC RATINGS Taylor’s steel-edge doors conform to the highest security classification, Grade 40, through ASTM F476 - Security of Swinging Door Assemblies. The test measures a door assembly’s ability to restrain, delay, and frustrate the commission of break-in crimes. It specifies a grade for the door assembly, with Grade 40 representing the highest grade. For best protection from forced entry, specify an entry door with a Grade 40 rating. The Sound Transmission Class (STC) and Outdoor-Indoor Transmission Class (OITC) are tested and classified by Intertek’s Architectural Testing, Inc. (ATI), based on the ASTM E90 test standard for Sound Transmission Loss. The results are based on operable test units; inoperable results are available upon request. Detailed reports are available upon request. FLORIDA BUILDING CODE (FBC) APPROVALS Taylor offers steel doors tested for code compliance in Florida’s High-Velocity Hurricane Zones (HVHZ) and nonHVHZ regions. Detailed approval information can be found on Taylor’s website and the Florida Building Code (FBC) website under Product Approval. FBC website Taylor’s Technical Library Taylor’s Technical Library TDI website
24 R-VALUES Product Door Type Glazing U-Value Smooth Steel or Norwood Steel Steel Edge No Glass / Opaque 0.17 Smooth Steel or Norwood Steel Steel Edge With Glass Refer to the ENERGY STAR chart U-VALUES Taylor’s steel-edge doors have a polyurethane foam core that provides nearly twice the insulating properties of an insulated hollow metal door. This foam is injected into the steel shell and fills the entire cavity. The foam is blown (expanded) with an eco-friendly blowing agent that is CFC and HCFC-free. INSULATION ENERGY PERFORMANCE Energy-efficient steel doors in commercial settings offer a multitude of benefits. They lead to cost savings by reducing heating and cooling expenses, contribute to environmental conservation by lowering carbon footprints, and ensure compliance with regulations. These doors also create comfortable indoor spaces, enhance building durability, increase property value, and support green building initiatives. Polyurethane Foam Insulating Values K-Factor (75°F) R-Value/inch Foam thickness in door Calculated Foam R-Value in Door Taylor Steel Doors 0.165 6.06 1.67 10.12 R= 1/k
25 Max Size Allowed Limitations Max Hourly Rating Neutral or Positive Pressure Maximum Glass Size Allowed Single, Pairs or Double Egress 3'0" x 7'0" Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, door bottoms, thresholds. 20 minutes Neutral Pressure 792 square inches Single Only 3'0" x 7'0" Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds. 90 minutes Neutral Pressure 100 square inches Single Only 3'0" x 7'0" Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds. 20 minutes Neutral Pressure 792 square inches Single Only 3'6" x 7'0" Unit, Mortise, or Cylindrical Latches/Deadbolts max 5" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds. 90 minutes Positive Pressure 100 square inches Single Only 3'0" x 8'0" Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds. 20 minutes Neutral Pressure 792 square inches Single Only 3'0" x 8'0" Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds. 90 minutes Neutral Pressure & Positive Pressure 100 square inches Single Only 4'0" x 8'0" 20 Gauge Only, Unit, Mortise, or Cylindrical Latches/Deadbolts max 2 3/4" backset, Mortise Exit Devices/Surface mounted Vertical Rod Fire Exit Devices, RIM Type Fire Exit Devices/Surface Mounted Closers, door bottoms, thresholds. 90 minutes Positive Pressure 100 square inches Single Only FIRE RATED DOORS Steel doors with a steel edge are tested to withstand a minimum of 90 minutes of fire exposure at temperatures reaching more than 1,400 degrees Fahrenheit. Fire rated doors are tested and classified by Intertek’s Warnock Hersey. 4x25 5x20 10x10 FIRE GLASS Other styles are available by request. The maximum visible glass size for fire-rated doors is 100 sq inches.
26 OPTIONAL FRAMES COLONIAL CASING Special order only FLAT CASING SATIN BLACK BROWN WHITE QUIKFIT ADJUSTABLE FRAME SYSTEM The QuikFit Door Frame System is an entrance system that features a steel-edge door panel prehung into an adjustable steel frame. This system is easy to install and offers the industry’s highest fire and security ratings, making it ideal for a variety of project types. SPECIFICATIONS MATERIAL Two-piece adjustable galvannealed steel frame GAUGE Main frames are 18-gauge steel. Closer trim is 22-gauge for walls up to 7-1/2" and 18-gauge for walls over 7-1/2". WALL CONSTRUCTION 4-1/2" to 12-1/2" (1" adjustments) for 1-3/4" door INSTALLATION Anchoring holes and nail clearance slots for wood casing WARRANTY 1-Year Warranty AVAILABLE OPTIONS SIZES 6'8", 7'0", and 8'0" heights FINISH / COLOR White powder coat finish (standard) Brown and Satin Black (special request) SILLS Thermally broken sills (Inswing, Outswing, or ADA-compliant) CASING 1-1/2" Flat Casing, 1-3/4" Colonial Casing HINGES Variety of hinge preps, types, and finishes SWEEP Retainer and slide-on sweep for door panel COLORS FRAME SYSTEM TESTING FIRE RATING 20-minute or 90-minute DESIGN PRESSURE (DP) RATINGS +/- 60 up to 3670 FBC / TDI RATINGS Florida Building Code (FBC) and Texas Department of Insurance (TDI) approved Corner Detail Hinge Prep Detail CASING Header Closer Trim Header Base Special order only
27 REMODELER FRAME SYSTEM Enhance your door’s performance and security with the Remodeler Frame System. This system fits over existing wood frames for effortless installation of replacement units. Combine this corrosionresistant, 18-gauge steel frame with a steel-edge door for top-notch durability, energy efficiency, and security. Hinge & Lock Profile Frame Header Lock Channel Hinge Channel Hinge Details SPECIFICATIONS MATERIAL Galvanized steel frame with weatherstrip and an adjustable threshold GAUGE 18-gauge HINGE REINFORCEMENTS 11-gauge hinge reinforcements, spot-welded for maximum strength INSTALLATION Designed to fit over existing wood frames. Anchoring holes and slots for wood casing. FINISH / COLOR White powder coat finish, requiring no sanding or recoating SILL Adjustable sill FRAME ASSEMBLY Up to 6'11" height FRAME SYSTEM TESTING SECURITY TESTING Surpasses the most stringent forced entrance security test AVAILABLE OPTIONS SIZES 2'5", 2'7", 2'9", and 2'11" widths, 6'5", 6'7", 6'9", and 6'11" heights Lock Details
PHONE: 800.248.3600 • REQUEST QUOTE: quotes@taylordoor.com • PLACE ORDER: orders@taylordoor.com Taylor Entrance Systems™ reserves the right to change product features and specifications without prior notice. Photography used herein may not represent current product offering. The door glass shown in the photography is not provided by Taylor Entrance Systems. Taylor Entrance Systems is a trademark of Wausau Supply Co. For California Residents Only WARNING: This product can expose you to chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. Taylor Entrance Systems, 631 North First Street, West Branch, Michigan 48661 • VISIT US: taylordoor.com Choose Taylor for doors that not only meet standards but exceed expectations. Your vision, our precision. Let’s build something exceptional together. Discover Taylor’s exceptional steel entry doors with unparalleled ease through our partnership with ARCAT. Accessing crucial resources for your projects has never been simpler. Directly download high-quality design files and product specs from ARCAT, which include: • CAD drawings • Revit & SketchUp BIM files • LEED data • Product specs SPECWIZARD BIM OBJECTS SPECIFICATIONS CAD DRAWINGS 94404491 | 02/26
